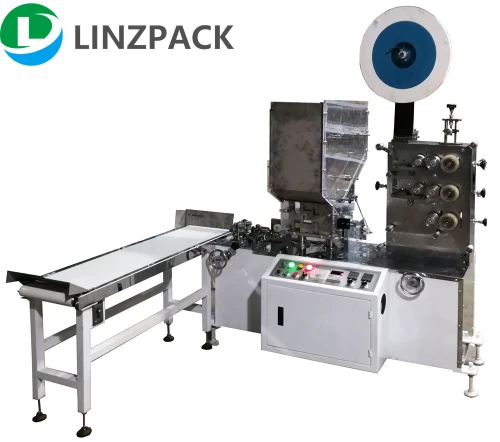

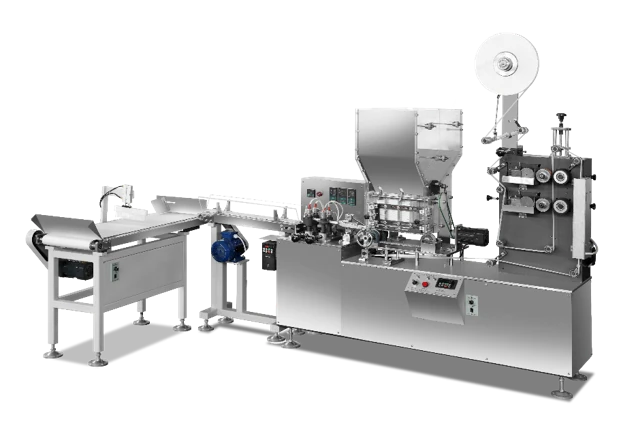

Single paper straw packaging machine
Single paper straw packaging machine
Single paper straw packaging machine
Single paper straw packaging machine
Single paper straw packaging machine
Model
MXDP-20

Item specifics

Wrapping material
food grade paper, 25~56mm, 20~40gsm
Packing size(mm)
Diameter: 4-12mm, length 100-260mm
Production speed
400~600pcs/min
Printing option
single/double color

Product review

Description

Advantages of the machines:
Auto counting, package qty can be pre-set, once the pre-set qty is reached, machine will given alarm and shut down.

Printing, feeding and packing can be operated in one process.

Straw packing length can be adjustable in certain range
Machine details:

Straw feeding hopper

Material :Stainless steel frame

Plexiglass (PMAA): Adjustable to match straw length

Straw down device:synchronous motor and swing arm

Feeding model : by chain feeding



Printing unit

Single/double color can be choosed

Power transmission : by chain;Printing unit : by gear

Traction unit:1set, rubber roller and chrome plated roller

Print unit: Ink container, anilox roller, doctor blade,

 printing cylinder, rubber roller

Dry fan:1SET , with heating function

Paper straw feeding: by manual

Cutting&Sealing

Lengthways sealing: sealing roller-one couple,

pressure adjusted by manual

Horizontal Sealing: sealing roller-one couple,

pressure adjusted by manual, with cutting knife-one couple

Material: mould steel

With manual adjust wheel

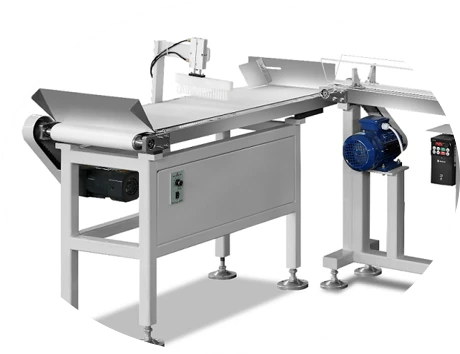

Conveyor

1 set, Synchronous reduction motor + controller

Machine Main Parts

Motor

SIEMENS
Frequency converter
Schneider
Touch pannel
Schneider
Bearing
TBI
Electronic applicances
Schneider
CE, UL, CSA approved option selection
