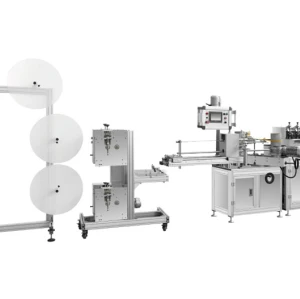

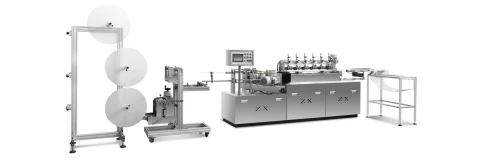

High speed six cutting knives paper straw making machine
High speed six cutting knives paper straw making machine
Model
MX-60C

Item specifics

speed
60m/min
paper straw inner diameter
3.3~16mm
paper straw thickness
0.5~1mm
paper straw length
90~1200mm

Product review

Description

Machine Introduction

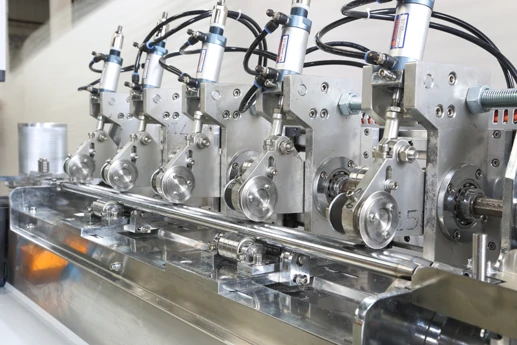

Multi-knife Cutting Paper Straw

The cutting mathed is pneumatic cutting. We can customize 6 to 8 knives for you, to reduce the rubbish from cutting process.

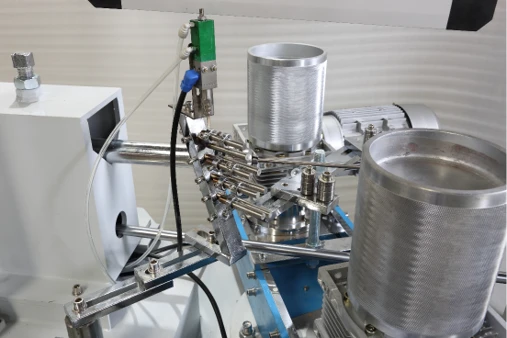

Two Head wheel hubs

The two heads wheel hubs are connected by a belt, which provide power, giving three layers of paper to be formed into shape.

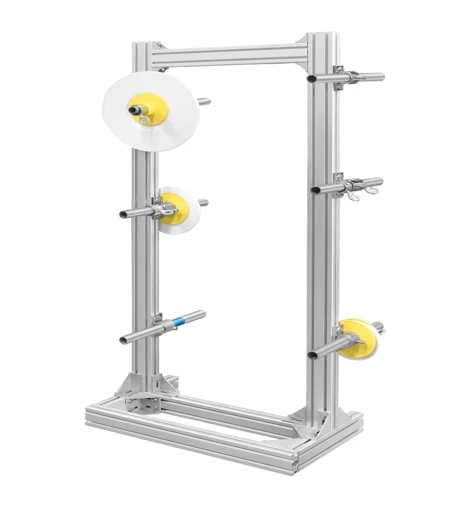

Paper stand

This paper stand unwinder design, the worker can continue the paper without machine stopping, so can improve effciency and reduce paper waste.

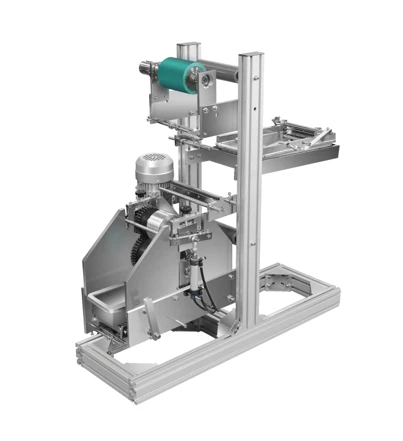

Gluing system

Glue temperature control, Keep the glue from setting in winter.  304 stainless steel material avoild corrosion

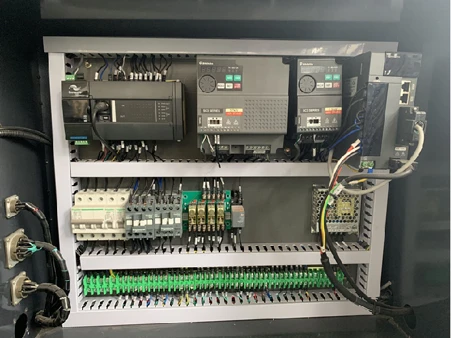

Machine Parts

Main Motor

3kw   Schneider

Pneumatic Component

Airtac Brand

Length Fixation

Encoder

Inverter

4kw (Schneider)

Servo Motor

1kw (Schneider)

Low-voltage apparatus

Schneider

PLC controller

Schneider

Linear Guide

THK
